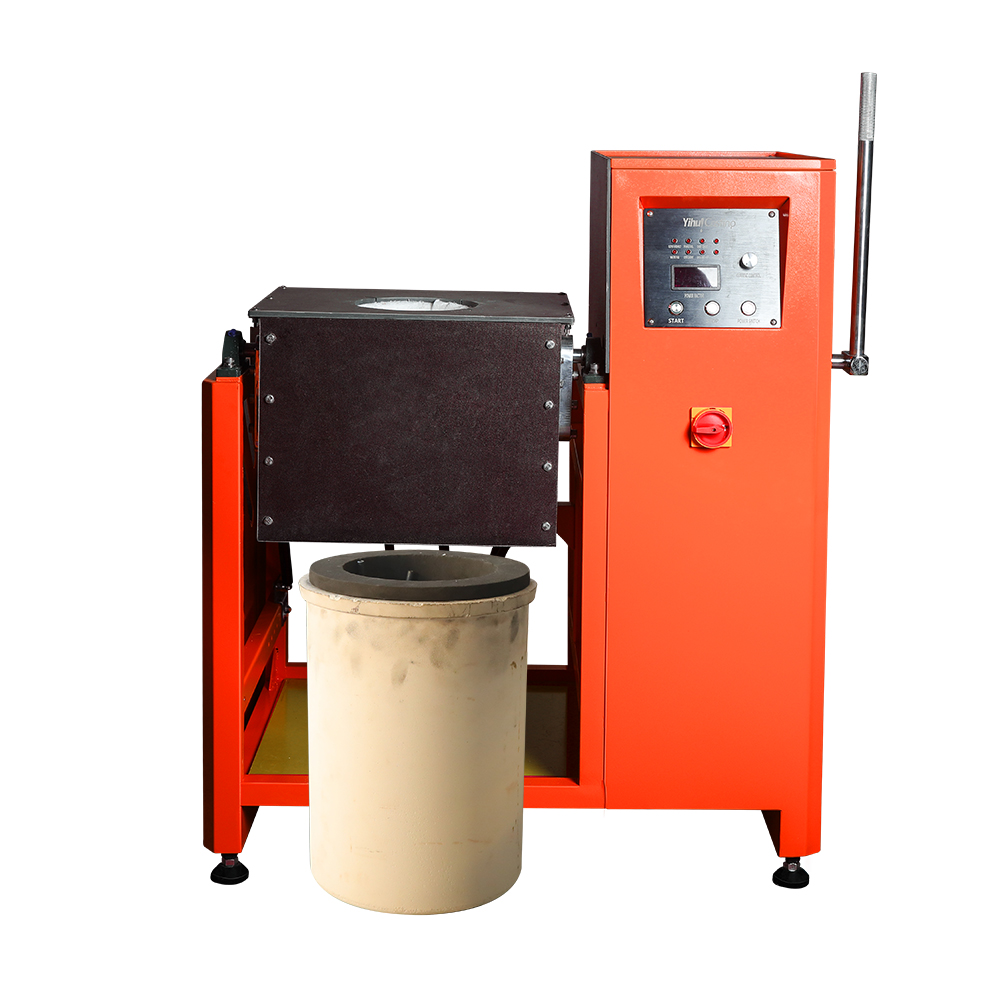

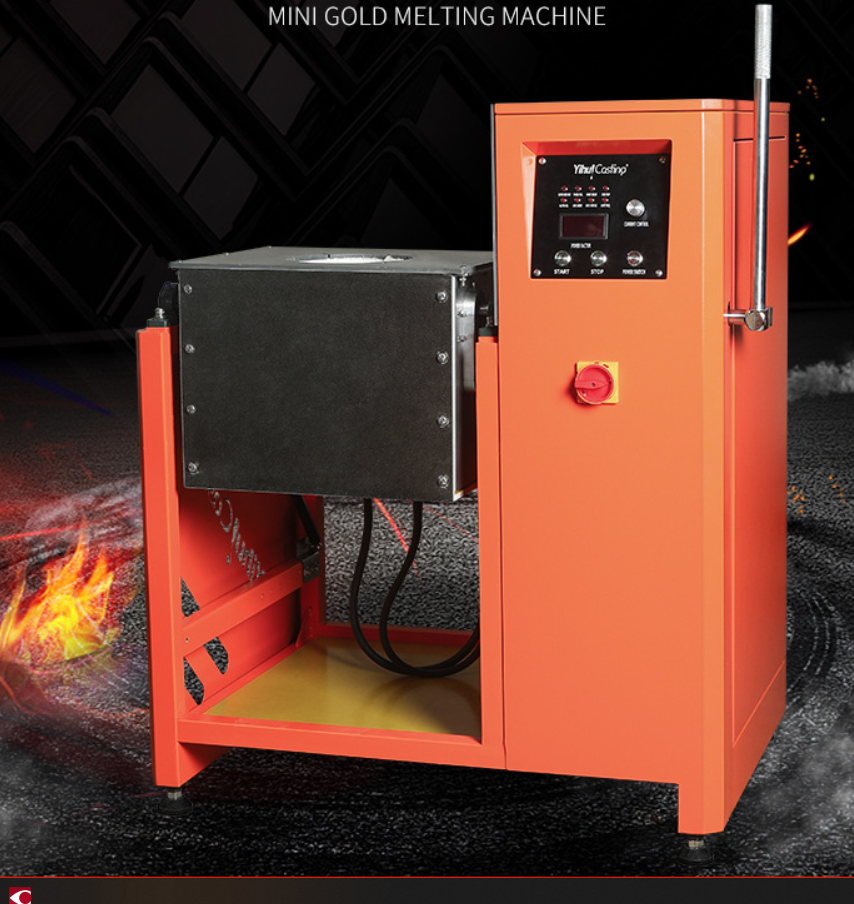

This medium-frequency induction furnace uses IGBT with a high-frequency power supply to melt metal by induction heating. It offers the advantages of fast melting, low interference, etc.
This device features all-solid-state IGBT frequency conversion and power regulation, soft-switch triple-vibration control and automatic frequency tracking technology. It is an extremely reliable guarantee of 100% full load and 24-hour continuous operation capability. It has multiple protections, e.g. overcurrent, overvoltage, water shortage, phase failure and so on. The medium-frequency power supply can heat the metal quickly and stir it electromagnetically to obtain a high temperature and a homogeneous molten metal.
The furnace has a small footprint. Modular design, easy maintenance, no need to prepare special foundations, low operating costs, easy operation, no pollution and noise.
Product features:
1. The melting unit is suitable for melting gold, silver, copper, beryllium and other non-ferrous metals.
2. With IGBT technology, you get high output power and stable high efficiency.
3. Surge protection and overcurrent protection device.
4. Adjustable melting temperature, digital display, good insulation.
5. 100% full load, 24-hour operation.
6. Fast temperature rise, energy-saving, low melting costs with high cost efficiency.
7. Practical cabinet housing, compact design with small size and low weight, easy operation, simple and convenient maintenance.
Technical parameters:
Input power: 380 V/50 Hz, 40 A
Output power: 25 kW
Suitable metals: gold, silver, brass, etc.
Melting capacity: 40 kg (gold)
Melting time: 25 minutes
Max. temperature: 1350 ℃
Water cooling: water chiller
Weight: 110 kg
Size: 60x50x135.5cm
Color: Orange
Contents:
1x induction melting furnace for 40 kg
1x crucible tongs
1x water hose
1x graphite melting crucible
1x ceramic sleeve
1 year warranty
Watch product video on YouTube
Delivery time: approx. 2–5 working days
Statutory warranty, guarantee and spare parts
The statutory rights in respect of defects apply. For consumers the limitation period is two years from delivery of the goods; for business customers, section 9 of our Terms and Conditions.
In addition to the statutory warranty, DEXDO GmbH, Winchester Straße 2, 35394 Gießen, Germany, grants a guarantee of 12 months from delivery on this device. The guarantee covers the free rectification of material and workmanship defects, at our option by repair or replacement. To make a claim it is sufficient to send a notification in text form within the guarantee period to marktplatz@dexdo-online.de. Your statutory rights in respect of defects exist independently of this guarantee and are neither restricted nor affected by it.
We keep spare and wear parts (e.g. crucibles, ceramic jackets, induction coils) in stock or obtainable for at least 5 years from purchase. We offer repairs through our service.
For the digital elements of this product (control software/firmware) we provide the necessary updates for at least two years from delivery.
