Product features:

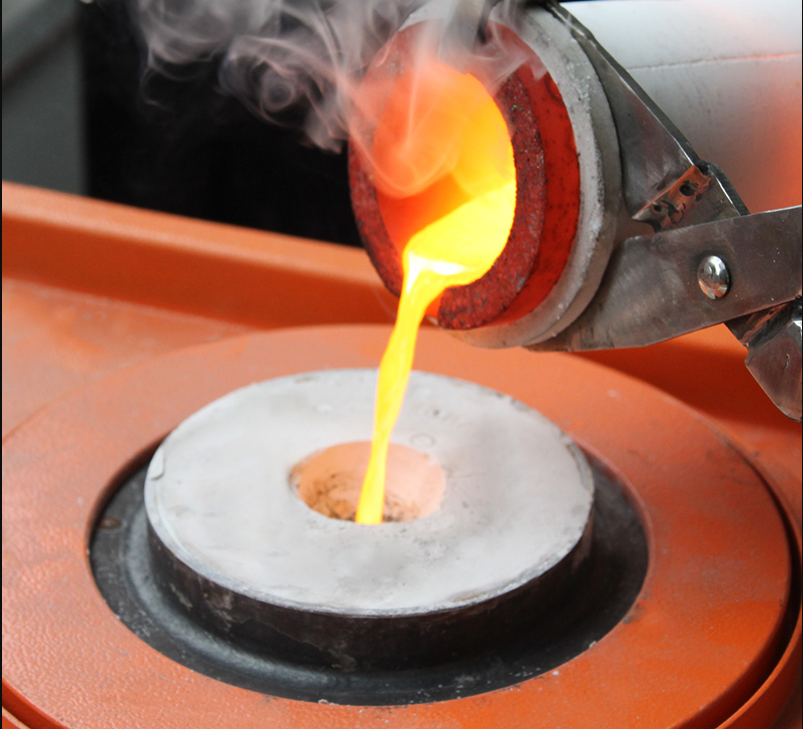

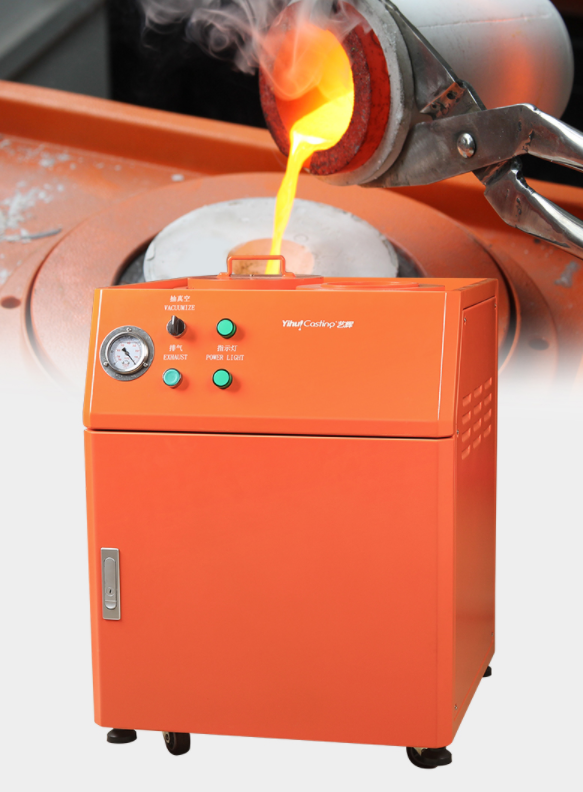

The vacuum casting machine is used to pour liquid molten metal into a plaster mold (flask) under vacuum in order to reduce burrs on castings and increase the smoothness of the workpiece surface.
TECHNICAL PARAMETERS
| Power supply | 380 V, 50 Hz, 3 phase |
| Power input | 1.5 kW |
| Vacuum pump capacity | 15 L / 30L |

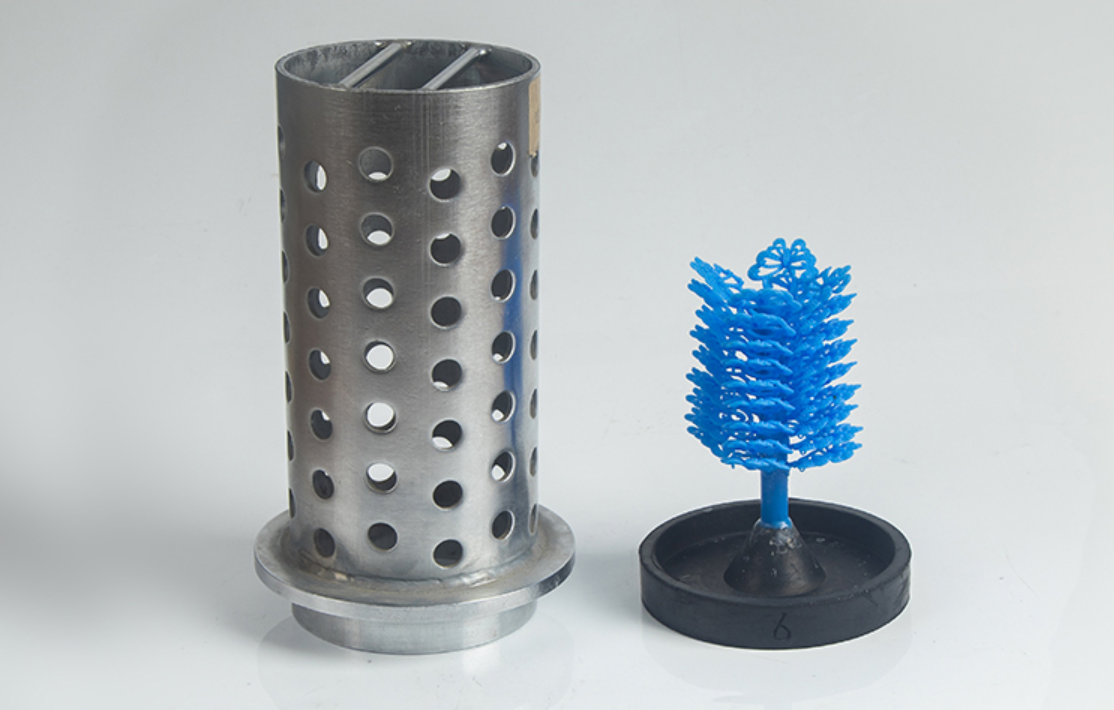

| Suitable diameter of flask | 3.6″, 4.0″, 5.0″ |
| Suitable height of flask | ≤ 10 |
| Weight | 100 kg |
| Size | 600 x 800 x 800 mm |
| Remark | 220 V / 1 phase – on request |
1 year warranty
Statutory warranty, guarantee and spare parts
The statutory rights in respect of defects apply. For consumers the limitation period is two years from delivery of the goods; for business customers, section 9 of our Terms and Conditions.
In addition to the statutory warranty, DEXDO GmbH, Winchester Straße 2, 35394 Gießen, Germany, grants a guarantee of 12 months from delivery on this device. The guarantee covers the free rectification of material and workmanship defects, at our option by repair or replacement. To make a claim it is sufficient to send a notification in text form within the guarantee period to marktplatz@dexdo-online.de. Your statutory rights in respect of defects exist independently of this guarantee and are neither restricted nor affected by it.
We keep spare and wear parts (e.g. crucibles, ceramic jackets, induction coils) in stock or obtainable for at least 5 years from purchase. We offer repairs through our service.
